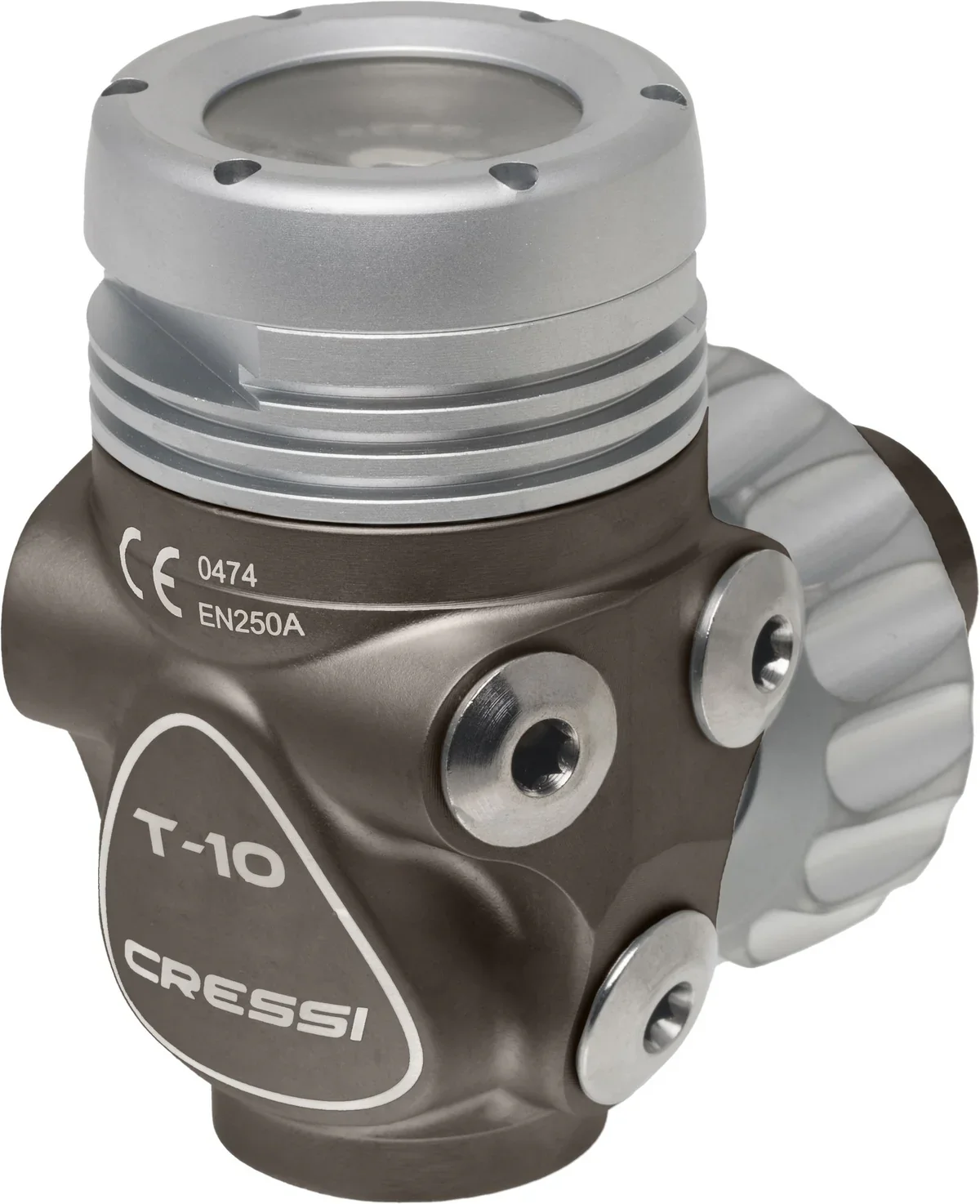

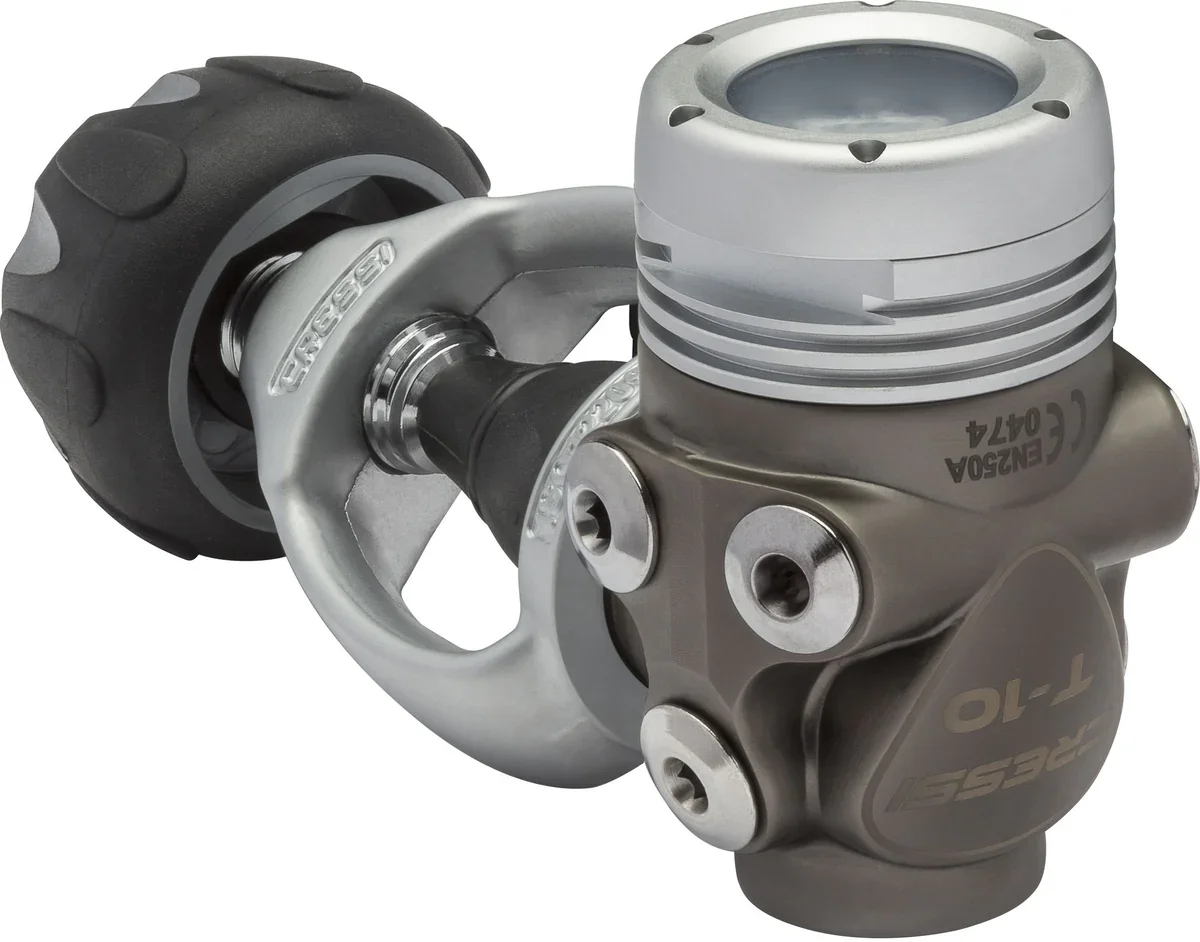

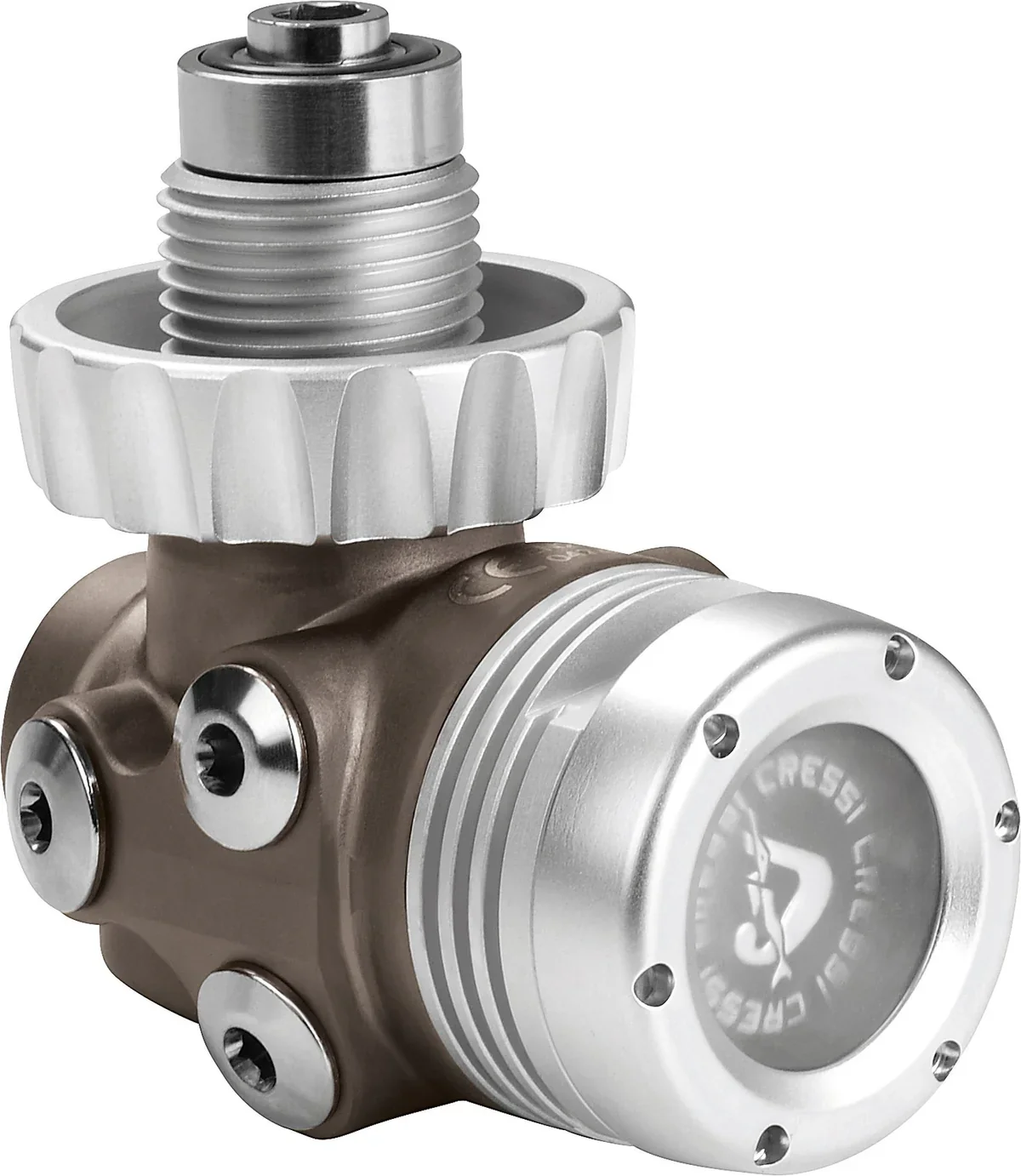

FEATURES:
Hyper-balanced diaphragm (watertight chamber on t10-sc)
2 hp 7/16 unf ports
4 mp 3/8 unf ports
Operating pressure: 300 bar (4350 psi) din version, 232 bar (3365 psi) international version
Calibration pressure: 10 bar
High-capacity conical filter in chemically nickel-plated spherical bronze
Removable nozzle in Aisi 316 steel
Hyper-balancing system
Anti-pressure drop pneumatic spring
Stainless steel calibration spring with micro peening treatment
Low-friction technopolymer slider shaft
Body protection in polyurethane thermoplastic
Quantity of air supplied: 4500 l/min
Weight, int version: 720 gr
Weight, din version: 602 gr

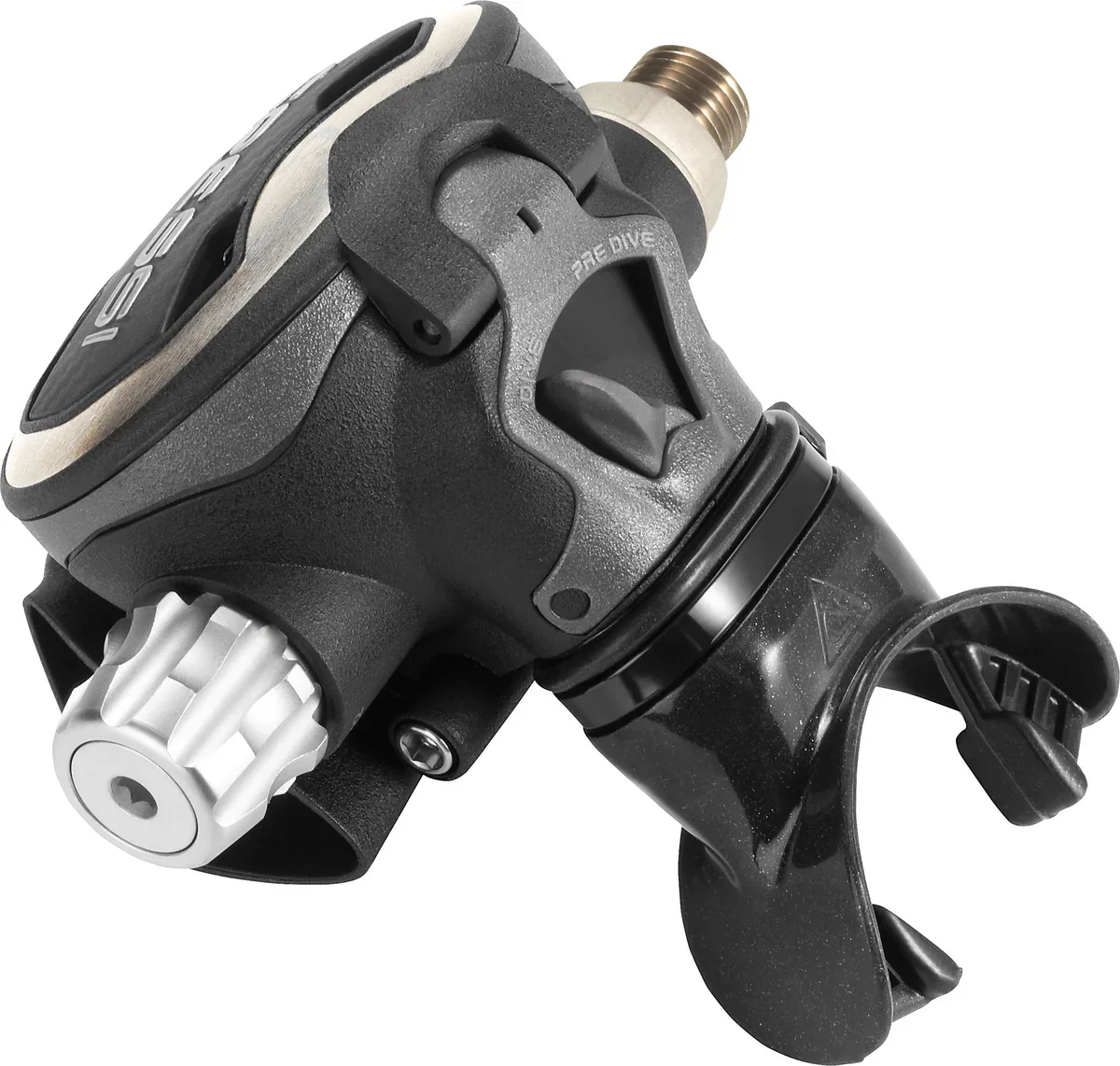

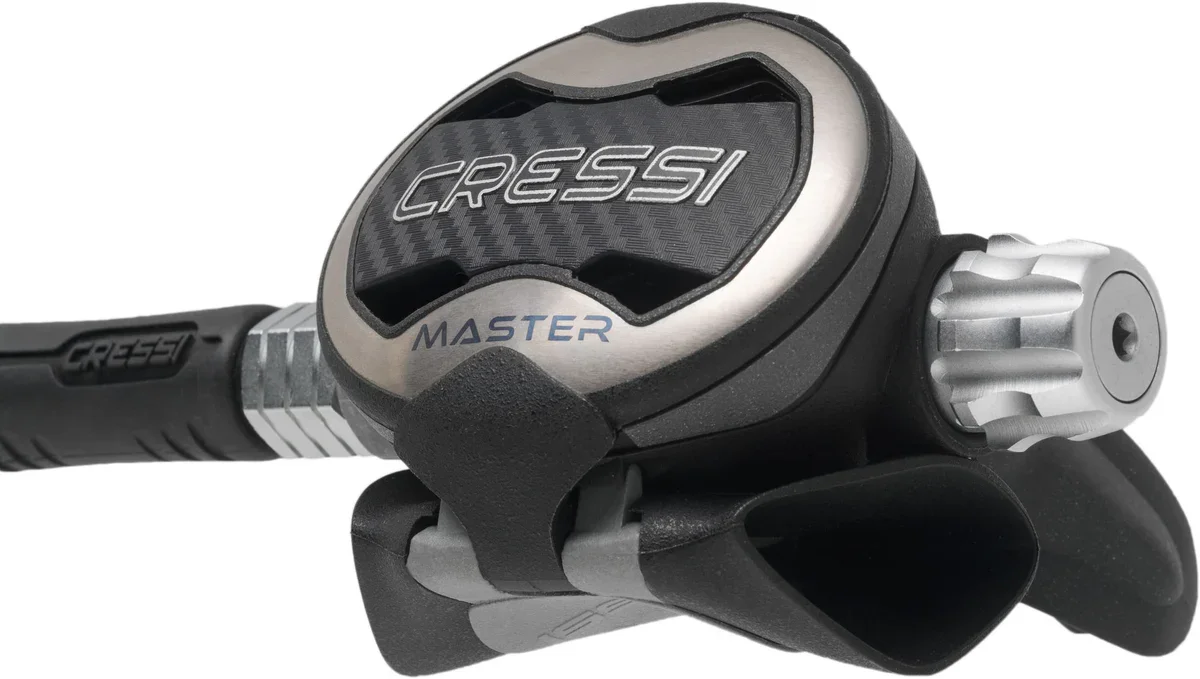

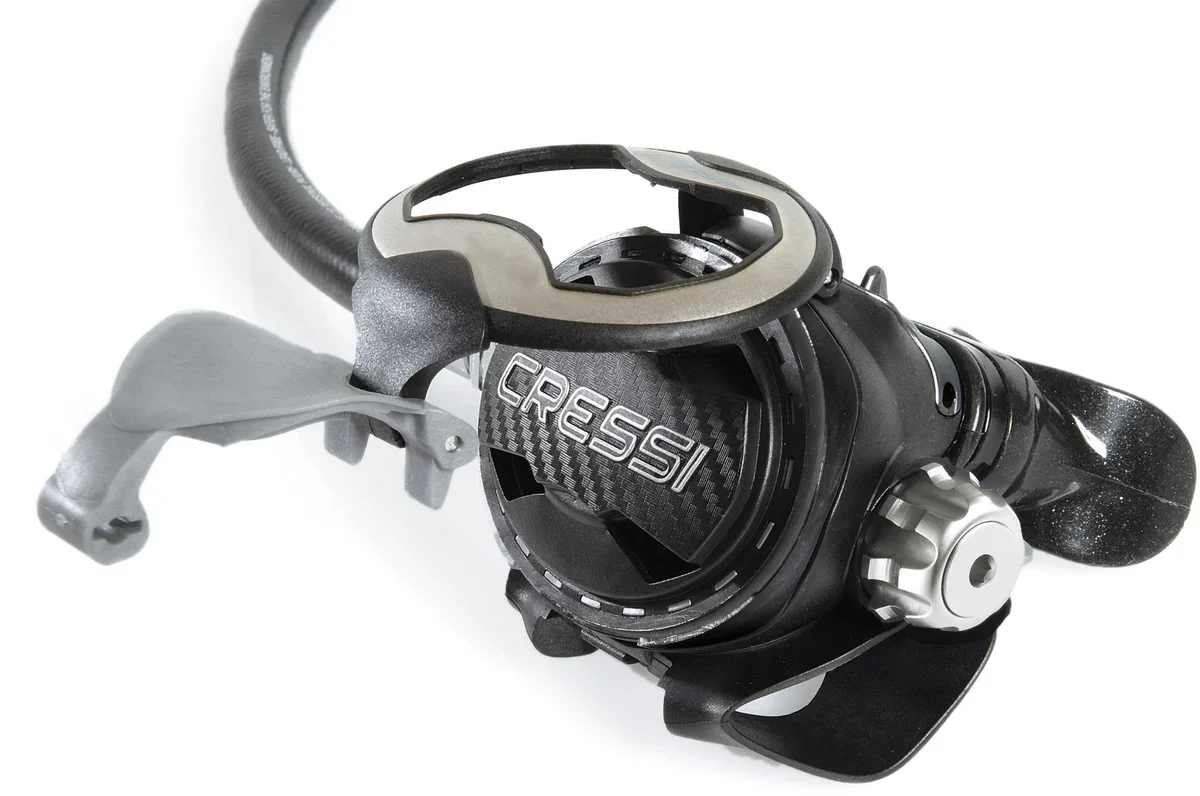

Technical features 2nd stage
Pneumatically balanced
Adjustable venturi
Adjustable inhalation effort
Patented elliptical diaphragm
Patented low-friction lever
Air delivery system without injector
Adjuster knob with dual or
Laser-etched titanium front piece
Internal heat exchanger
Cap opening with cam-lock
Noise-absorbing technopolymer body
Removable technopolymer deflector
Removable mechanics
Weight without hose: 207 gr
Combination performance
Average cracking effort 3.5 mbar
Average breathing effort 0.6 j/l
Jacketed hose extremely light and flexible weight: 153 gr
Certification en250/2014 for cold waters
