Product Overview

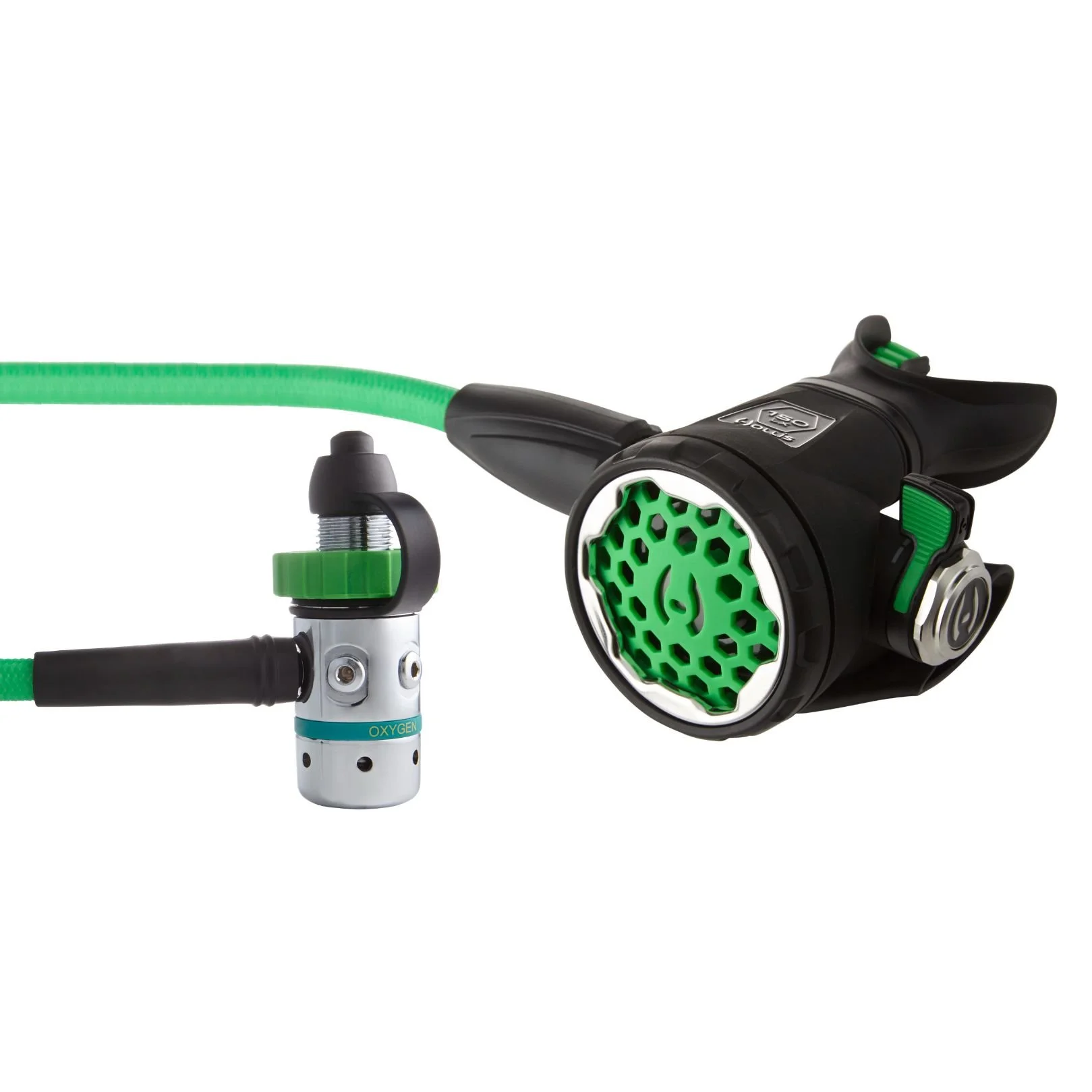

The Hollis 150LX + HO2 brings together a dedicated oxygen first stage, balanced second stage and Miflex braided hose for suitably trained divers building an oxygen decompression setup.

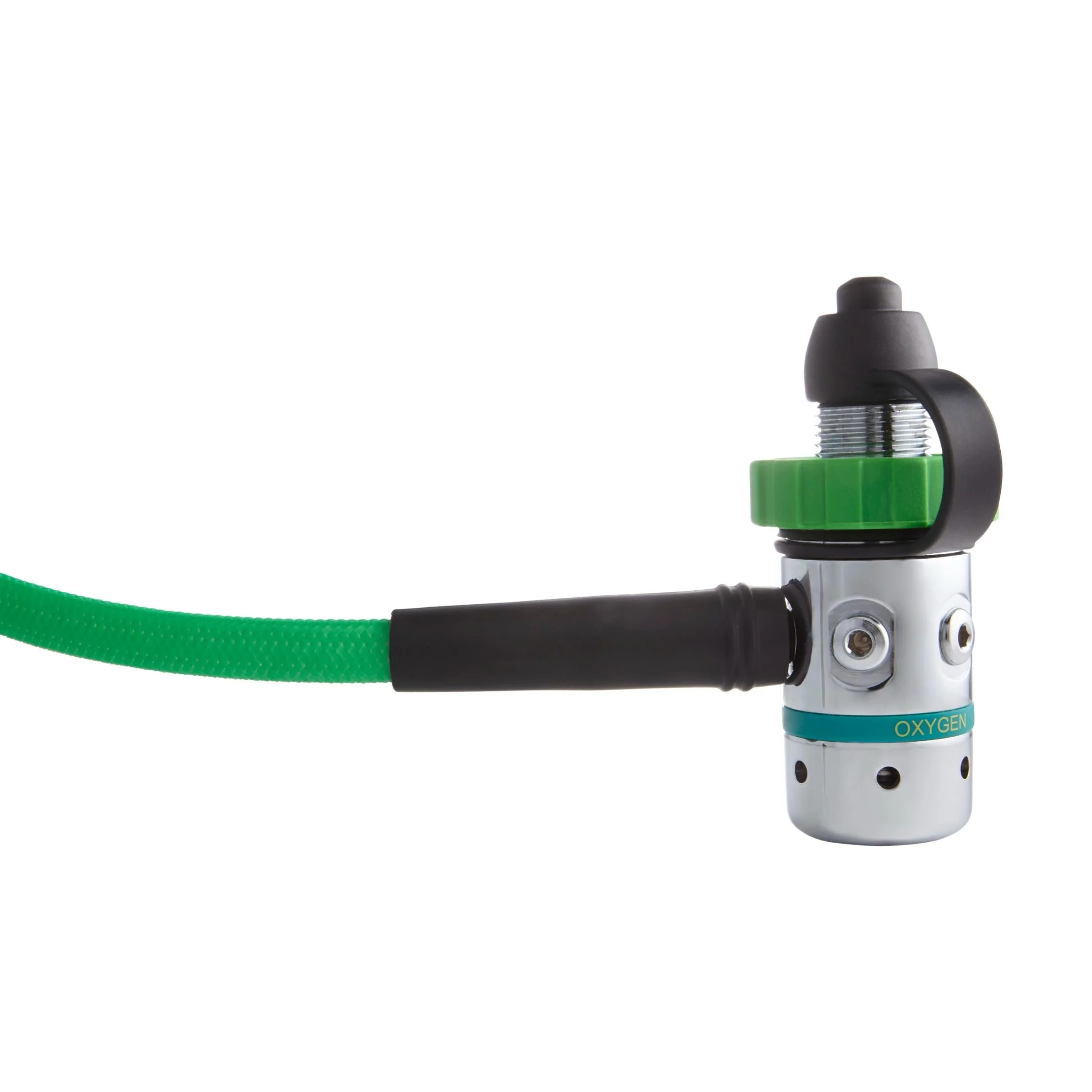

The HO2 first stage uses a non-balanced flow-by piston design, with four low-pressure ports and one high-pressure port. Its green DIN handwheel and oxygen markings help identify its intended gas service, complemented by the green hose and second-stage detailing.
Key Features
Dedicated oxygen configuration: compatible with up to 100% oxygen when maintained in the required oxygen-clean condition.
HO2 piston first stage: a straightforward non-balanced flow-by design with a chrome-plated brass body.
Pneumatically balanced second stage: the 150LX includes a dive/pre-dive Venturi lever.
Green identification details: green DIN handwheel, hose and second-stage trim identify the oxygen configuration.
Stainless steel components: the second-stage front ring, packing nut and end cap are made from 316 stainless steel.
Miflex braided hose: supplied to connect the first and second stages.
Orthodontic mouthpiece: includes dual-colour bite tabs.
Technical Specifications
Brand: Hollis
Model: 150LX + HO2
First stage: HO2, non-balanced flow-by piston
First-stage body: chrome-plated brass
Low-pressure ports: 4 × 3/8-inch
High-pressure ports: 1 × 7/16-inch
Second stage: 150LX, pneumatically balanced
Venturi control: dive/pre-dive lever
Connection: 300-bar DIN
Gas compatibility: dedicated oxygen service, up to 100% oxygen
Included hose: green Miflex braided regulator hose
Colour: black with green detailing
What’s Included
Hollis HO2 DIN first stage
Hollis 150LX oxygen-compatible second stage
Green Miflex braided low-pressure regulator hose
A pressure gauge, high-pressure hose, cylinder and stage rigging are not included.
Compatibility & Options
This oxygen regulator package is supplied with a DIN connection. Choose a compatible cylinder valve and oxygen-compatible pressure gauge, hose and accessories to complete your setup.
Oxygen cleanliness must be maintained throughout the regulator and all connected components. Use within your training and follow the manufacturer’s instructions for preparation, gas compatibility, operating limits and maintenance.
