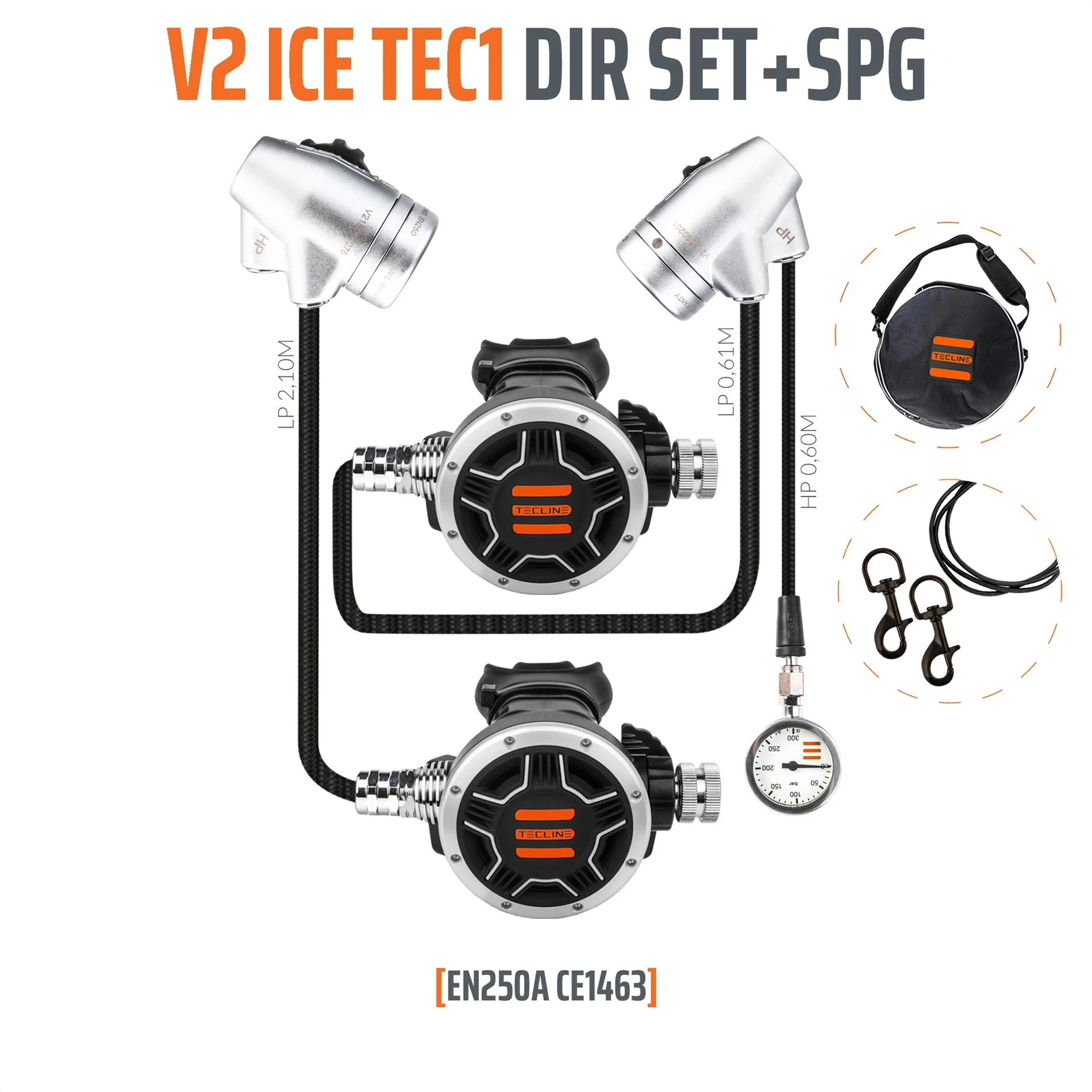

Tecline V2 ICE TEC1 DIR Regulator Set with SPG

Product Overview

The Tecline V2 ICE TEC1 DIR Regulator Set with SPG brings together the main regulator components for a twin-cylinder setup.

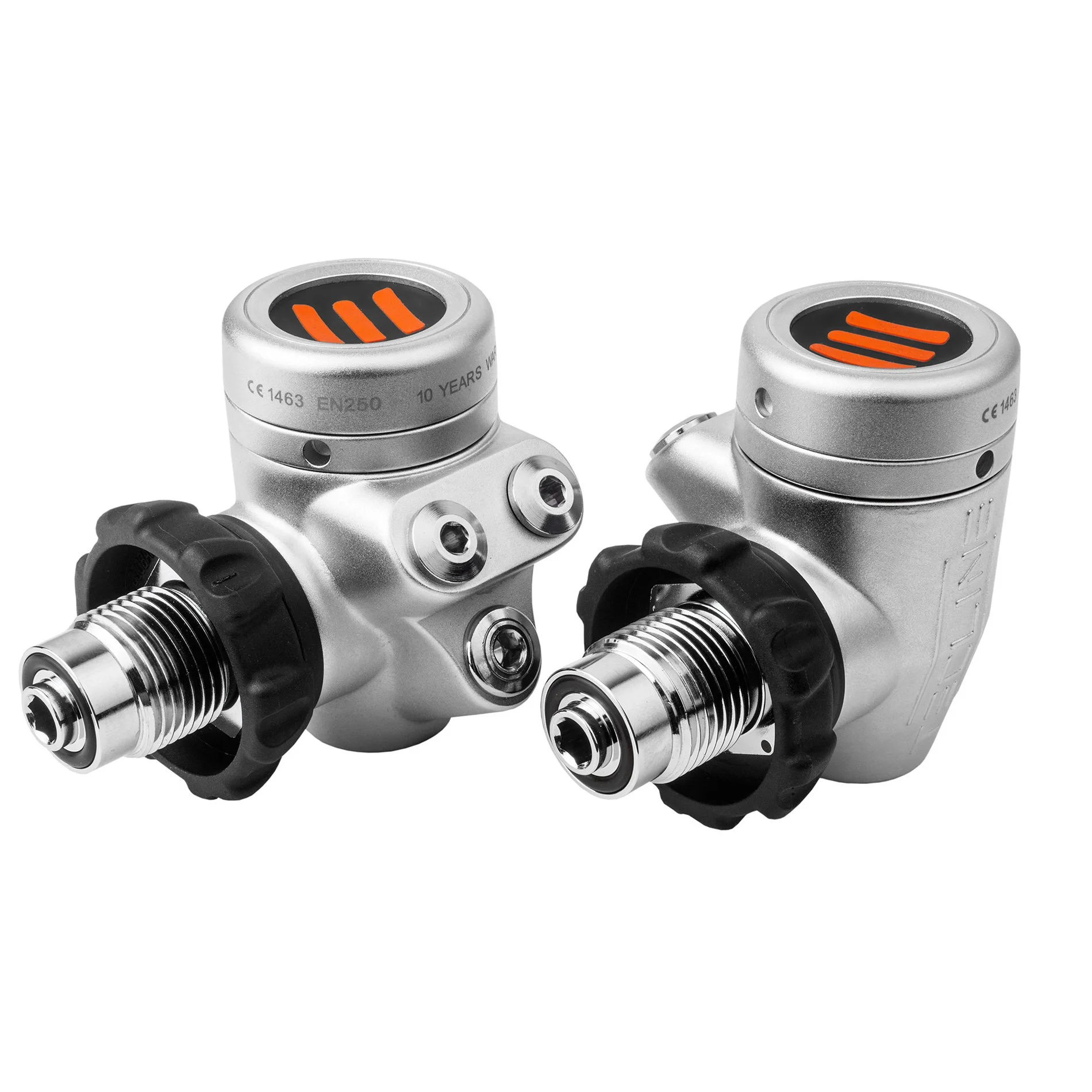

The V2 ICE left and right first stages have hose connections arranged for twinset routing. Each uses a balanced-diaphragm design with a dry chamber and additional cold-water kit.

Two pneumatically balanced TEC1 second stages provide adjustable breathing resistance and Venturi control. The package includes a pressure gauge, long and short regulator hoses, bolt snaps, a backup-regulator bungee and a Tecline bag.

Key Features

• V2 ICE left and right first stages designed for twinset hose routing.

• Balanced-diaphragm first stages with dry chambers and cold-water kits.

• Two pneumatically balanced TEC1 second stages.

• Adjustable breathing resistance and Venturi control.

• TEC1 aluminium outer rings and additional heat exchangers.

• 210 cm primary hose and 61 cm backup hose.

• Pressure gauge, bolt snaps, backup-regulator bungee and bag included.

Technical Specifications

• Brand: Tecline

• Model: V2 ICE TEC1 DIR Set with SPG

• Product code: 10055

• Configuration: twin-cylinder regulator package

• First stages: V2 ICE left and right pair, balanced diaphragm

• Ports per first stage: 2 LP and 1 HP

• Maximum first-stage operating pressure: 300 bar

• Second stages: 2 × TEC1, pneumatically balanced

• Second-stage controls: breathing-resistance adjustment and Venturi control

• LP regulator hoses: 210 cm and 61 cm, black Proflex

• HP gauge hose: 60 cm, black Miflex

• Pressure gauge: included

What’s Included

• 1 × Tecline V2 ICE left first stage.

• 1 × Tecline V2 ICE right first stage.

• 2 × Tecline TEC1 second stages.

• 1 × pressure gauge.

• 1 × 210 cm black Proflex LP regulator hose.

• 1 × 61 cm black Proflex LP regulator hose.

• 1 × 60 cm black Miflex HP gauge hose.

• 2 × 88 mm bolt snaps.

• 1 × backup-regulator bungee.

• 1 × Tecline regulator bag.

BCD and drysuit inflation hoses are available separately.

Compatibility & Options

This listing covers the standard package with the hose lengths and components listed above.

Check that the first-stage connections, hose routing and inflation-hose requirements suit your twinset. Have the regulator configuration correctly assembled and checked before use.

Alternative hose lengths, colours and types can be discussed before ordering. Follow Tecline’s instructions for gas compatibility, operating limits and maintenance.
