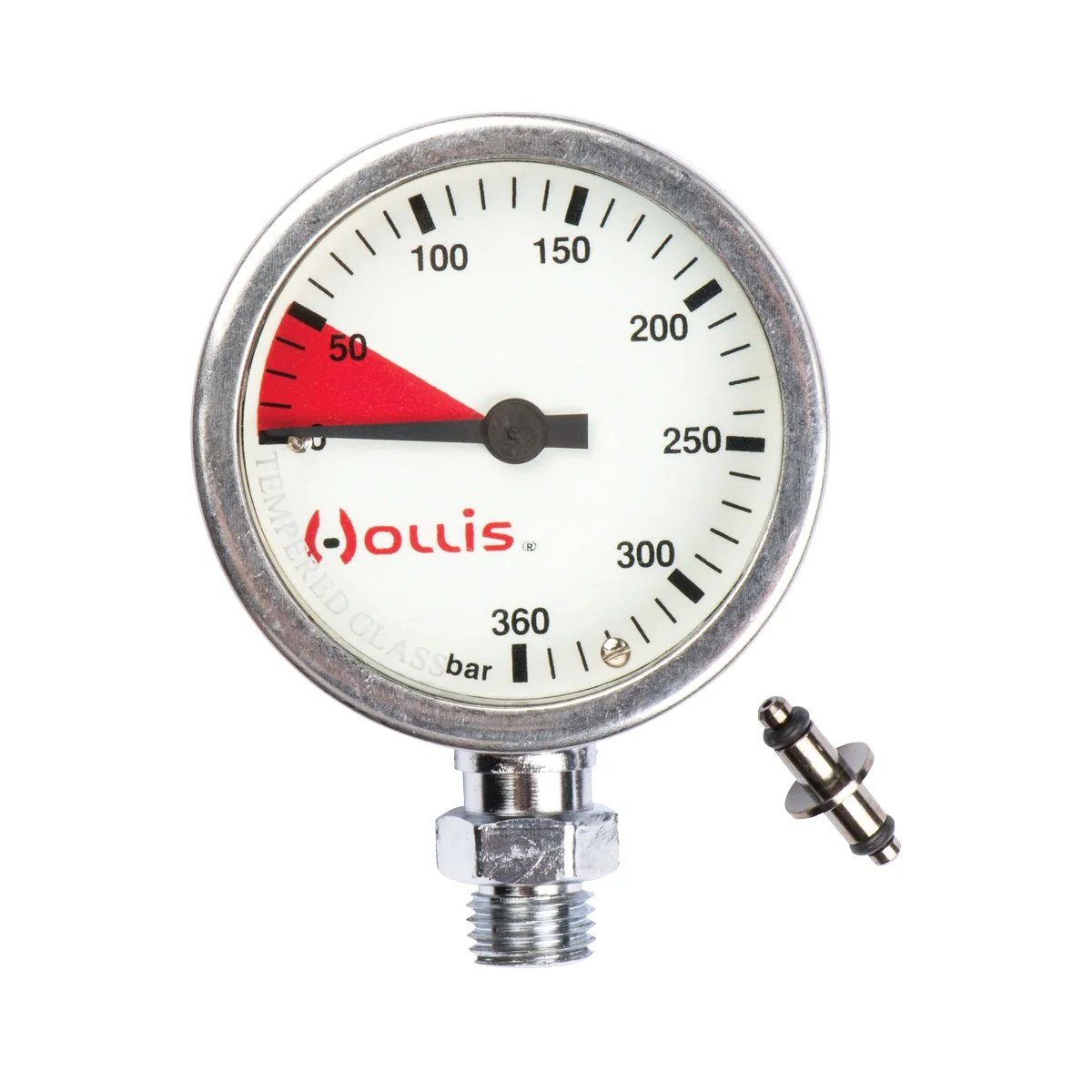

Hollis 2-inch Brass & Glass Pressure Gauge

Product Overview

The Hollis 2-inch Brass & Glass Pressure Gauge provides a mechanical cylinder-pressure reading for your regulator setup.

This metric version displays pressure in bar. Its luminescent dial helps with visibility in low light, while a chrome-plated brass housing and scratch-resistant glass protect the gauge.

Key Features

• Metric dial reading from 0–360 bar.

• Luminescent face for low-light visibility.

• Chrome-plated brass housing.

• Scratch-resistant glass lens.

• Bourdon tube measuring mechanism.

• Supplied oxygen-clean by Hollis.

Technical Specifications

• Brand: Hollis

• Model: 2-inch Brass & Glass Pressure Gauge

• Supplier code: HO204.2311

• Type: submersible pressure gauge

• Nominal size: 2 inches

• Units: bar

• Dial range: 0–360 bar

• Housing: chrome-plated brass

• Lens: scratch-resistant glass

• Mechanism: Bourdon tube

• HP hose: sold separately

What’s Included

• 1 × Hollis 2-inch pressure gauge, metric bar version.

High-pressure hose sold separately.

Compatibility & Options

This listing covers the metric bar version. Choose a compatible high-pressure gauge hose and have the assembly correctly fitted and checked.

For oxygen-service use, the hose and complete assembly must also be suitable, and oxygen cleanliness must be maintained. Follow Hollis’s instructions for use and maintenance.
